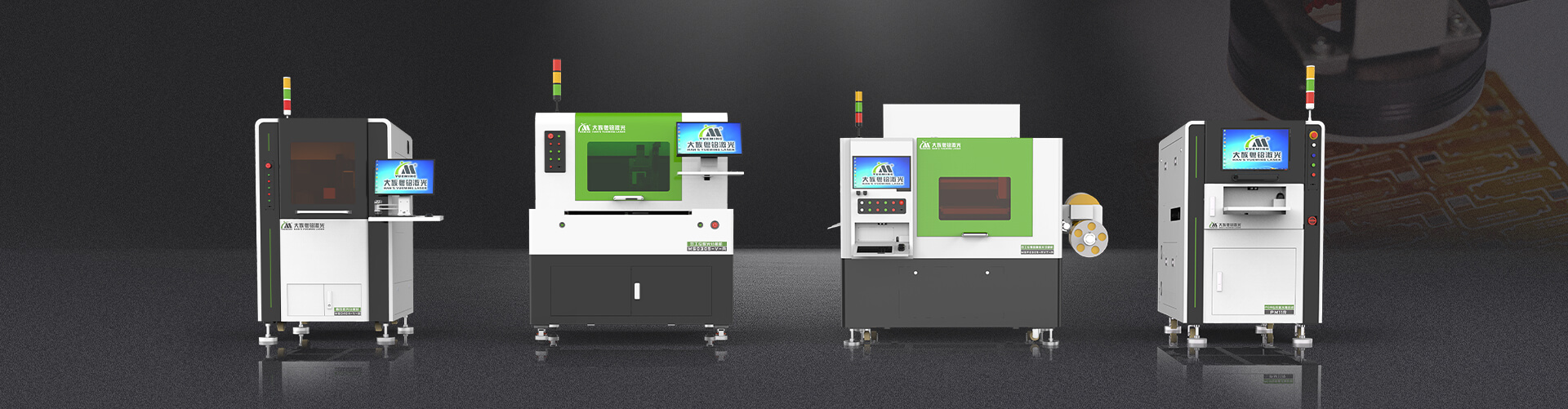

The precision laser cutting machine (laser depaneling machine) adopts non-contact processing, will not produce any mechanical deformation and can be processed arbitrarily complex graphics, shorten delivery time. High performance CCD enable auto-location, auto-correction and suitable for high precision processing, cutting thermal effect, improving the yield rate; cutting without burrs and black edges, no secondary processing, suitable for FPC reinforcement board, PCB rigid board, PI, LCP and other materials laser cutting film.

Double CCD high-definition vision system, real-time monitoring, recording and analysis of the processing process, and processing parameters can be set according to different local areas and materials; High-quality professional light source, stable power output, no damage to the base material, to ensure that the bottom material is intact during the opening process; Fully enclosed design, protection grade IP54, strong dust-proof, dirt-proof water vapor-proof,fearless of harsh environments.

WUltra-low frequency cold light source laser generator achieves minimum heat-affected zone (10μm);Double laser head with high-quality laser generator guarantee excellent cutting effect and high efficiency;The minimum focusing spot is 5μm, which is especially suitable for micro cutting and drilling of organic/inorganic materials;CCD vision system guarantee multiple images positioning such as cross, solid circle, hollow circle, L-shaped angle and etc.

◆Digital high-speed scanning galvanometer, small size, fast speed, can resist strong electromagnetic interference and ground vibration, high stability;

◆The built-in plate flapping mechanism can realize double-sided marking, and the high-precision ball spline is selected to ensure that the plate flapping mechanism has no stress on the substrate;

◆The transmission structure adopts a high-precision linear guide rail and a ball screw to form a motion structure, which is stable in operation, high in accuracy and long in service life;

◆The intelligent design of the equipment industry 4.0 can connect online and offline MES systems according to the needs, and can also be embedded in the SMT assembly line;

◆Multi-Mark point positioning and automatic report warning function to prevent wrong processing, wrong processing, and repeated engraving.

PCB laser engraving machine series are mainly used in all kinds of soft and hard boards, FPC, PCB, PCBA, chips and other 3C electronics industry chip processing, marking and engraving characters, two-dimensional codes, one-dimensional codes, logos,; it can be seamlessly connected to SMT The assembly line supports the online data transmission and information return of the MES system.

UV or Picosecnd laser cutting machine of cover film (single/double station) is mainly used for precision cutting of FPC, cover film and coil material in the 3C industry. The processing format is 300*500mm. The processing will not produce contact crushing, and the qualified rate of products is high; equipped with ultra-fast laser, the cutting affected area is small, and the processing effect is good
