Using multiple sets of imported laser and high-speed galvanometer combination, greatly improving the processing area and work efficiency; Imported servo motor precision feeding system to ensure stable and accurate feeding speed; Multi-head flying laser cutting system, which can realizes large-format printing and cutting infinitely long patterns; Modular design, convenient for transportation, layout and installation.

Rack & pinion transmission system is adopted to realize the high speed bilateral synchronous drive, which is three times higher in efficiency compared to traditional cutting machines with belt conveyor ;Steel frame structure with the overall structure of welding and stress relief treatment, to ensure the machine deformation tolerances within0.02 mm; Equipped with containment envelope,could enhance safety and reduce accidental injury;

RofinDC series high power CO₂ laser generator, stable performance, high density light spot, low maintenance cost and long service life； The unloading unit and the cutting unit are designed separately to keep the working efficiency of the unloading and cutting synchronization； Distributed abstracting air structure, effectively absorbing and cutting dust particles, to realize clean and environmental cutting； The whole machine adopts CNC automatic lubrication system to keep 24 hours continuous cutting.

Equipped with a 7-inch touch screen and our latest self-developed uCut controller, acceleration up to 5G, the max engraving speed can support 2.8 m/s; It supports the electric lift and automatic focusing function of the work surface. The machine can automatically adjust the focal length according to the thickness of the product for processing; With multi-functional workbench design, users can quickly and easily choose and replace the table according to the application situation. At present, there are mainly three configurations: aluminum workbench /aluminum blade workbench /honeycomb table; The enclosed dust-proof beam is adopted to protect the linear guide from dust pollution and improve the service life of the linear guide; It can be equipped with CO2 laser and fiber laser at the same time, supporting metal and non- metal processing. The current laser power can support 30W~120W.

High-efficiency double independent motion system cutting mode, the maximum speed can reach 300mm/s; Imported configuration of core parts, stable performance of the whole machine; Professional flexible material cutting control software, in addition to the regular automatic typesetting function, it also supports climbing type typesetting, code division typesetting, left and right foot typesetting, and multi-layer typesetting; A large format camera cutting system and a small format camera positioning cutting system can be configured at the same time; Collecting area equipped, which is separated from the processing area. No need stop the machine when collecting and has high safety; Integrated circuit design, reducing the wiring of machine auxiliary equipment, customers only need to provide the main power cord access terminal and air source; Support the simultaneous processing mode of double-coil materials and independent coiling mechanism.

Reinforced welding body processed by the large gantry precision milling. Heat treatment technigne such as tempering, vibration aging adopted on key parts to ensure machine long term stability and accuracy; Dual-beam asynchronous laser cutting system: two laser heads working separately, achieve optimal cutting path allocation, effectively improving work effificiency and saving materials; Synchronized rack & pinion system, max positioning speed 60m/min; High rigidity enhanced aviation aluminum gantry, improve the gantry strength and rigidity and much lighter; Automatic lubrication: the lubrication time period can be set in the software, to ensure the accuracy of transmission system; It is suitable for majority of fabrics materials.

Electric heads(Two) as optional for separate and independent working. CCD camera , pen, large-format vision system and projecting functions areoptional for better cutting experience. Epsilon type of conveyor as standard , other type conveyor as optional . For the epsilon type of conveyor, the front&back presser, as an optional device, can be applied together to ensure the cutting accuracy. Multiple-layer of material feeding is available. Auto-feeding and unloading system, the two laser heads distance adjust automatically, save time; Nesting software is optional, support mixed nesting, edge-sharing cutting, save material; Laser head distance can be adjusted automatically, depending on the nesting result.

Comply with CE certification safety standards, effectively protecting the safety of operators. Automatic generation of machining trajectories for offline simulation of machining. Automatically check and solve collision and singularity problems, etc. Without operating multiple software, accuracy and stability of equipment operation are higher. Precise cutting, high speed cutting according to the contour line after match. Auto-nesting software,support pair nesting,single side nesting,mixed nesting and scrap material nesting. Large format vision positioning,fast scan shot for the whole working area, contour line extraction and match well.

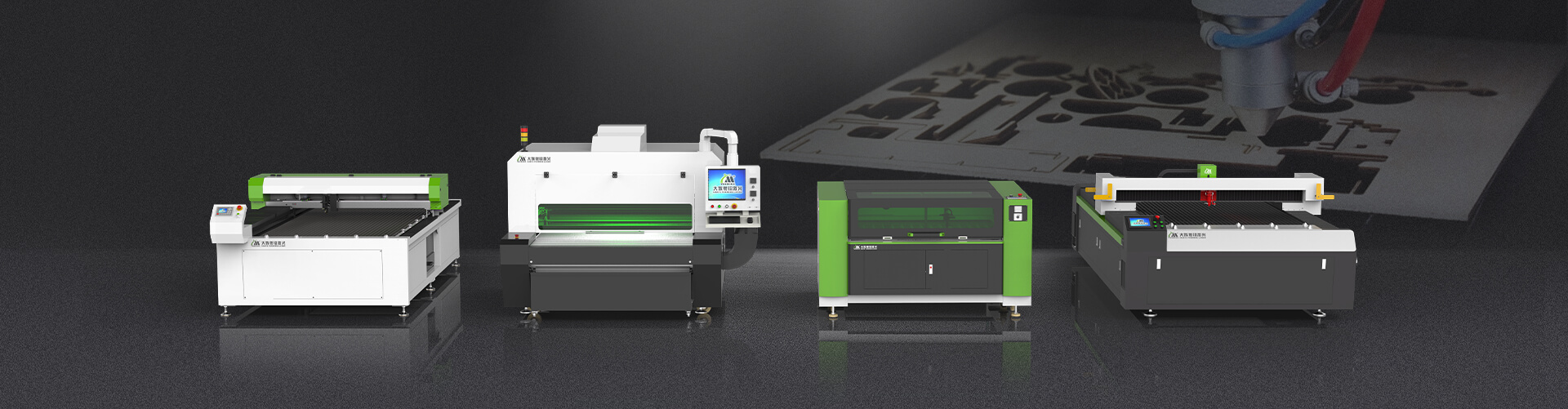

CO2 laser cutting machine series, cutting and engraving combined in one machine, for non-metal material, 1mm–30mm thickness cutting ability, widely used for acrylic, plywood, leather, fabric, plastic, rubber and bamboo, etc.
Working area: 600*400mm, 1000*800mm, 1200*600mm, 1300*900mm, 1600*1000mm, 1600*1200mm

Non-metal plate laser cutting machine series with working area 1300*2500mm designed mainly for signage industry , acrylic, plywood, MDF material cutting, different configuration version meet customer requirement

Asynchronous laser cutting machine supports two laser heads cut different graphics at the same time, supports automatic material extraction and multi-template matching processing, connect to the factory MES system to realize a complete laser intelligent production system.

The high- inertia servo motors ensure the maximum acceleration is 1G Reinforced welding bed, high-rigid crossbeam Imported laser source ensure the good spot quality Stable output power and low maintenance cost The self-developed laser cutting software with powerful graphics processing Special smoke exhaust system strong smoke suction and effective separation of waste material

◆Fully-enclosed cutting area, with intelligent fire monitoring system, ensures the equipment safety;
◆The Gantry, made of lightweight carbon fiber material (Al), initial application to laser industry, with extremely stable performance;
◆Various embedded sensors to monitor and collect data in real time: the powerful OEE  system can meet the requirements of industrial 3.0 to intelligent equipment;
◆The whole transmission system adopts fully automatic CNC lubrication system, supporting 24-hour continuous cutting.

◆·Flying cutting, feeding and cutting at the same time, minimizing standby time to achieve higher productivity;

◆Fixed optical path, simple design, without regular adjustment and maintenance;

◆Fully-enclosed cutting area, with intelligent fire monitoring system, ensures the equipment safety;

◆Support real-time monitoring on the lens temperature; once temperature gets abnormal,the machine will stop and alarm automatically, effectively improving the safety of equipment.

Adopt EtherCAT bus system, with stable and efficient data transmission, strong anti-interference ability;

Self-developed SmartCarve gluing software with embedded art database, supporting call data with one click during process, convenient and fast;

lmported feeding system, ±3% glue dispensing accuracy, with wide range to adjust the glue volume, supporting glue suck-back and low liquid level alarm.
