Laser Marking Machine

UV Laser Marking Machine MUV-E-A

UV Laser Marking Machine MUV-E-A

Introduction

UV laser marking machine series products are suitable for a wide range of materials, small heat-affected areas, fine marking spots, and high efficiency. They are suitable for fine marking of various metal and non-metal materials. Almost no thermal effect on the material, which prevents materials from deformation, damage or burning

Inquiry

Sample

Cable marking
Circuit board marking
Gilt marking

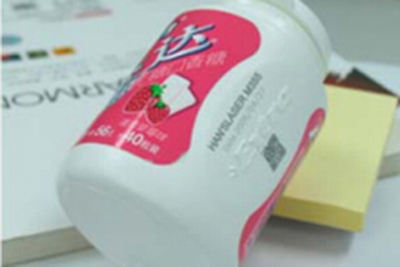

Food packaging marking
Parameter

Parameter

  • Modle
    MUV-E-A
  • Power (W)
    3/5
  • Working area(mm)
    110*110/200*200
  • Minimum line width (nm)
    ≤0.02
  • Minimum character (nm)
    0.1
  • Speed (mm/s)
    0-7000
  • Supply voltage
    220V 50HZ,10A
  • Overall dimension (mm)
    650 X 1000 X 1500
  • Weight about(Kg)
    200
  • Gross power(KW)
    1.5
  • Working environment
    Temp : 15~35°C, humidity: 5~85%, Clean,less dust

Feature

  • Equip with imported UV laser generator to guarantee high-quality laser beam, smaller laser spot, hyperfine marking, and high definition;
  • Extremely small heat-affected zone, almost no thermal effect on the material, which prevents materials from deformation, damage or burning;
  • Suitable for large range of material than infrared laser;
  • Imported high speed digital scanning galvanometer enjoys compact volume, high speed and superior stability;
  • The whole machine has stable performance and low power consumption;
  • The totally enclosed protection design can effectively prevent ultraviolet radiation which endangers human health;
  • The rotary worktable can be 2 or 4 stations, suitable for various products, High efficiency for loading & unloading and laser marking at the same time.
