Laser Marking Machine

CO₂ Triaxial Dynamic Laser Marking Machine Series MC-D-C

CO₂ Triaxial Dynamic Laser Marking Machine Series MC-D-C

Introduction

The standard version of the CO2 three-axis dynamic laser marking machine adopts the original imported CO2 radio frequency laser, three-axis dynamic scanning system, and imported configuration for the core components; The design of the body is compact, and the upper and lower double ventilation structures can effectively remove the processing dust; It is mainly used for Non-metallic materials, classic applications - laser hollowing of shoe uppers, laser engraving of decorative wood panels, etc.

Inquiry

Sample

Bottom marking of shoes
Decorative wood carving
Garment accessories marking
Greeting cards marking
Marble marking

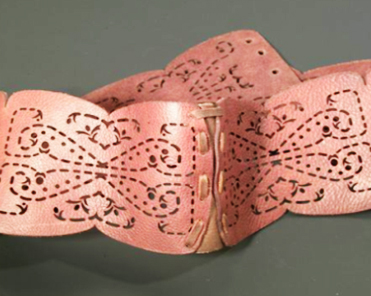

Leather marking and punching
Marking of reflective materials
Vamp hollow
Parameter

Parameter

  • Modle
    MC-D-C
  • Gross power
    6/8/9kW
  • Working area(mm)
    300×300~800×800
  • Overall dimension(mm)
    1300×2200×2200
  • Weight
    600kg
  • Minimum line width
    0.2mm Depending on the format
  • Minimum character
    2mm
  • Laser power
    180/250/350W
  • Speed
    0~7000mm/s
  • Supply voltage
    220-240V50/60Hz
  • Working environment
    Temp:15~35°C Humidity: 5~85% Clean,less dust
  • Modle
    MC-D-B
  • Gross power
    6/8/10kW
  • Working area(mm)
    300×300~800×800
  • Overall dimension(mm)
    1200×1420×2200
  • Weight
    8000kg
  • Minimum line width
    0.2mm Depending on the format
  • Minimum character
    2mm
  • Laser power
    180/250/350W
  • Speed
    0~7000mm/s
  • Supply voltage
    220-240V50/60Hz
  • Working environment
    Temp:15~35°C Humidity: 5~85% Clean,less dust
  • Modle
    MC-D-A
  • Gross power
    6kW
  • Working area(mm)
    300×300~600×600
  • Overall dimension(mm)
    1300×1600×1800
  • Weight
    450kg
  • Minimum line width
    0.2mm Depending on the format
  • Minimum character
    2mm
  • Laser power
    180W
  • Speed
    0~7000mm/s
  • Supply voltage
    220-240V50/60Hz
  • Working environment
    Temp:15~35°C Humidity: 5~85% Clean,less dust

Feature

  • Original imported C02 RF laser generator, high quality laser spot with uniform power density and stable output power;
  • Triaxial dynamic high speed scanning system, imported core component, equipped with digital display focusing function, small gathering spot, large working area, high speed, flexible and good stability;
  • The light path cavity adopts sealed dual dustproof design, ensure the laser source, galvanometer and other core optical parts work in a clean environment, make the machine work more stable with longer life;
  • The optical bench can be adjusted manually to meet different processing size requirement, largest working area can reach 600*600mm;
  • Aluminum frame, compact structure, smaller area occupation and higher space utilization;
  • The upper and lower double suction structures enable the processing dust to be effectively removed so as to achieve environmental protection and safety;
  • Smart Scanner professional control system, easy operation, small resource occupation, quick data processing. Compatible with AutoCAD, CorelDraw with high procession efficiency.
