Fiber Laser Cutting Machine FLY3015

Fiber Laser Cutting Machine FLY3015

Introduction

Fiber laser cutting machine with shuttle table series, working area range from 15003000mm to 80002500mm, bigger size customization available. Metal material cutting range from 1mm to 40mm thickness like stainless steel, carbon steel, aluminum, copper cutting , widely used for lighting, household appliances, furniture manufacturing, metal kitchen cabinet, shipbuilding, mechanical manufacturing etc. HystoRe storage system optional

Inquiry

Sample

Metal materials such as Carbon steel, Stainless steel, Aluminum alloy, Brass etc.

Carbon steel cutting

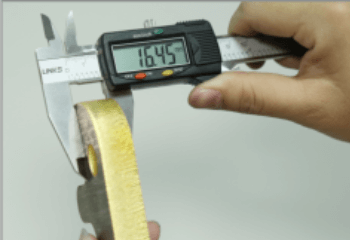

Brass cutting

Stainless Steel cutting

Aliuminum Alloy cutting

Parameter

Parameter

Modle

FLY3015
Laser power(W)

1000~30000
Working area(mm)

3000x1500
Overall dimension(mm)

9100x3200x2250
Weight(kg)

7.5
Maximum positioning Speed (m/min

140
Positioning accuracy(mm)

±0.05
Repeated positioning accuracy(mm)

±0.03

Modle

FLY6020
Laser power(W)

1000~30000
Working area(mm)

6000x2000
Overall dimension(mm)

15500x3700x2250
Weight(kg)

11
Maximum positioning Speed (m/min

140
Positioning accuracy(mm)

±0.05
Repeated positioning accuracy(mm)

±0.03

Model

HystoRe 3015
Number of store layers

8 Floor
The scope of work(mm)

3000*1500
Overall dimension(mm)

13150x4800x4840
Storage load(T)

24
Max tray lif ting speed(m/s)

0.25
Max tray translational moving speed(m/s)

0.4
Power supply

30 KVA/3P+E/380VAC±10%/50HZ

Feature

Gantry structure, high strength welding frame, stress reduction treatment, good rigidity, small deformation;
Enclosing exterior protective design, CE standard protective safety window;
Ergonomic design, intelligent operating terminal, friendly interface, easy to learn;
Precision servo motor with high accuracy transmission mechanism, large transmission torque, small error, good dynamic performance;
Y axis sliding plate is made by cast aluminum, with integrated z-axis system: high precision, fast response, stable operation;
Double-layer translation shuƩle tables, the structure is safe and reliable, with few failures and high efficiency;
Built in remote assistance function to deal with equipment failure, improve the time efficiency of equipment fault troubleshooting and effectively reduce the cost of after-sales service.
