Laser Marking Machine

Model

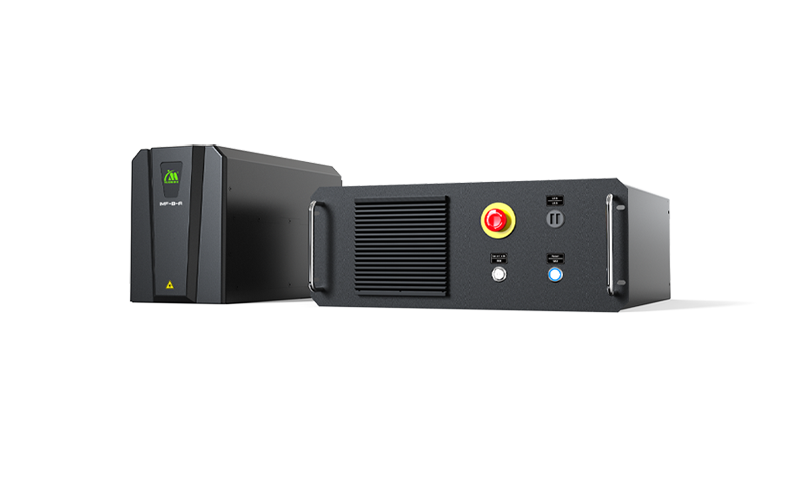

3D Fiber Laser Marking Machine IMF-B-A

3D Fiber Laser Marking Machine IMF-B-A

Introduction

The intelligent optical fiber marking machine can realize large-format laser marking, and the maximum marking range is 20020060mm. The equipment is equipped with assembly line components to realize the online flying marking function of the product and improve the laser processing efficiency. Realization of multi-scene marking requirements. The three-axis dynamic module designed by Han's Yueming can realize precise and high-speed focus length control in the Z-axis direction, so as to realize engraving on the surface of the product with height difference. Even on 3D products such as curved surface and inclined surface, a consistent and fine engraving effect can be achieved.

Inquiry

Sample

3D laser marking

Auto parts laser marking

Helmet 3D laser marking

Helmet 3D laser marking

Parameter

Parameter

Modle

IMF-B-A
Laser Power (W)

20-50W
Working area(mm)

200*200*60
300*300*120
Average spot diameter(μm)

32.8
45.1
Minimum character (mm)

0.2
Speed (mm/s)

7000
Gross power (kw)

<0.5
Supply voltage

AC220V/50Hz
Working environment

Temp: 5~35 ℃ ，Humidity :<80%

Feature

The advanced 3-axis dynamic focusing technology is adopted, enabling flat laser marking & large-format 3D laser marking.
Streamline components are equipped for the fly marking function on the streamline, improving the working efficiency.
Module design which is easy to disassemble and assemble machine position changing. Some functions are on option product upgrading and easier maintenance.
Self-developed laser marking system with user-friendly HMI supports multiple language usage, multiple file format input, graphic drawing and editing. Easy to learn and operate.
Compatible with smart production, such as MES system and product tracking system for 3D laser marking machine.
